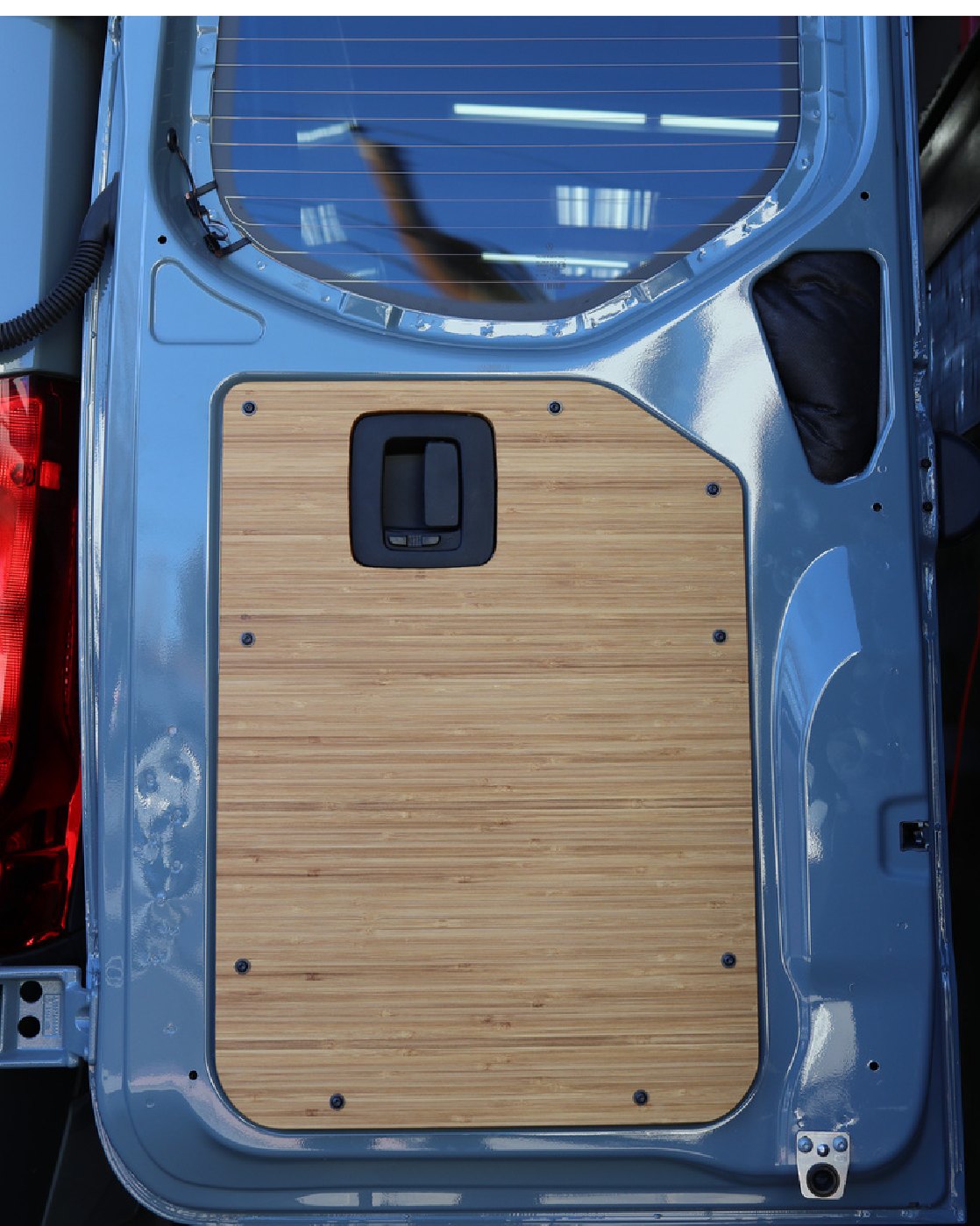

Sprinter Door Panel Installation Guide – Featherbuilt

How to install Featherbuilt door panels on your Sprinter's sliding door and rear doors. Every step is written out below, and the PDF has the same instructions if you'd rather print them.

Download: Door panel installation guide (PDF)

What you'll need

Step-up drill bit to expand the factory holes to 3/8" (10mm)
Cordless drill. Don't skimp on the drill!
Rivet nut gun: pneumatic, drill adapter or manual all work
Rust prevention paint or primer to protect the bare metal after you expand each hole
5/32" hex wrench: one is included, but a backup doesn't hurt
Permanent marker for marking holes and taking notes

Install the panels

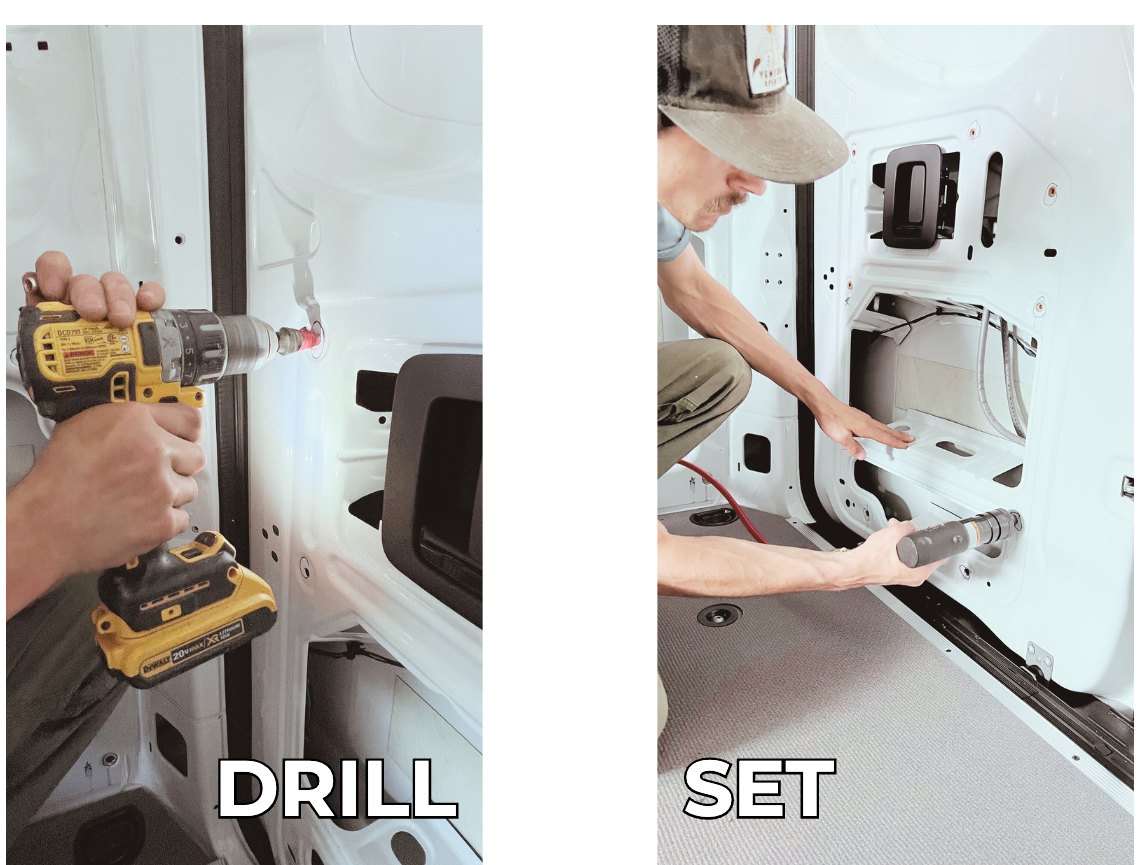

Step 1: Drill

Use the step-up bit to expand each mounting hole to 3/8" (about 10mm). Carefully remove any metal debris from each hole, then apply primer to cover the exposed sheet metal.

Step 2: Set the rivnuts

Insert and set (crunch) a 1/4-20 rivnut in each drilled and primed hole. Carefully thread a 1/4-20 screw into each one to make sure it's properly set and the threads are clean.

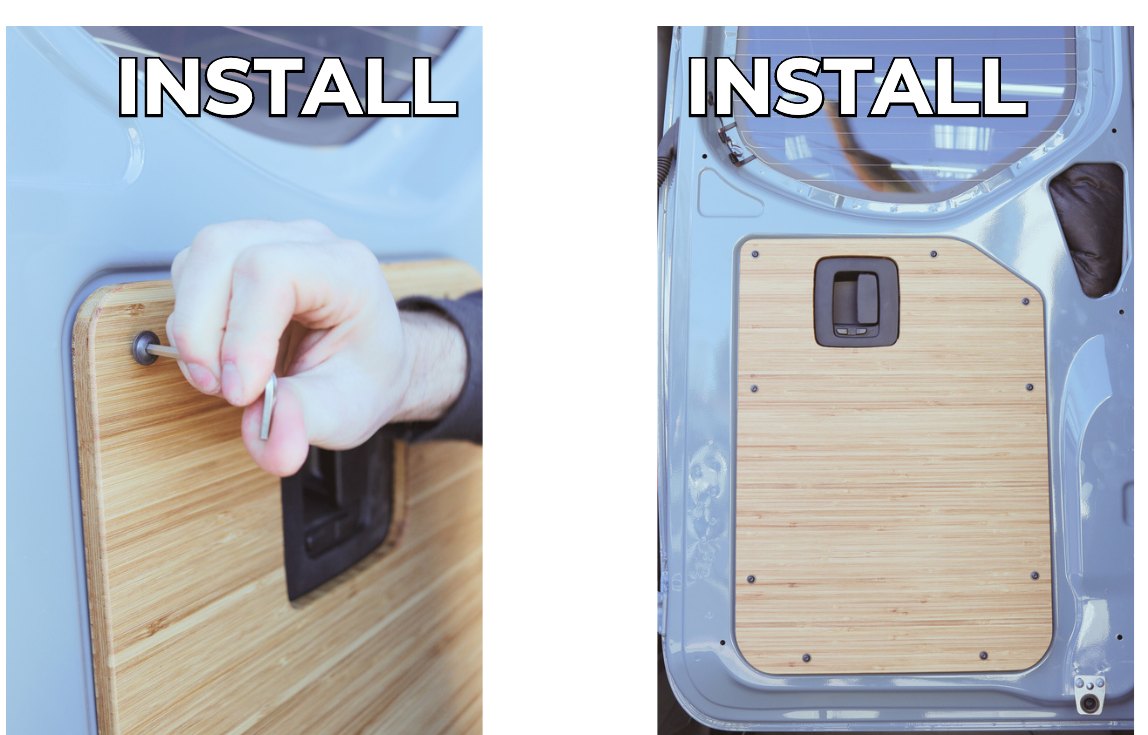

Step 3: Install the panel

Hold the panel up to the door and start inserting the screws. Start every screw before you fully tighten any of them, then use the 5/32" wrench to tighten each one until the panel is secure.

Products this guide covers

Need a hand?

You can do this, and we're here if you get stuck. Email support@featherbuilt.com or send us a message from the chat on featherbuilt.com. Photos of where you're stuck help us answer faster.
